Product introduction:

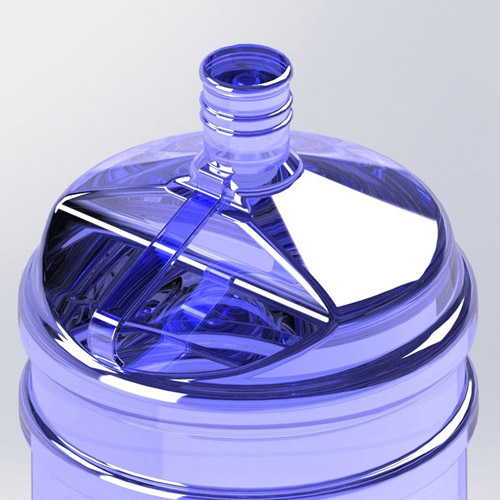

TJ-20L bottle blowing machine is specially used to produce 5 gallon bottles and 25 liter jars. For the production of 5 liter bottles and 25 liter wide-scale bottles, the normal output of producing 5 gallon bottles can reach 90-120 per hour.

Machine features:

Using advanced microcomputer control system, stable performance;

Conveyor automatically sends blanks;

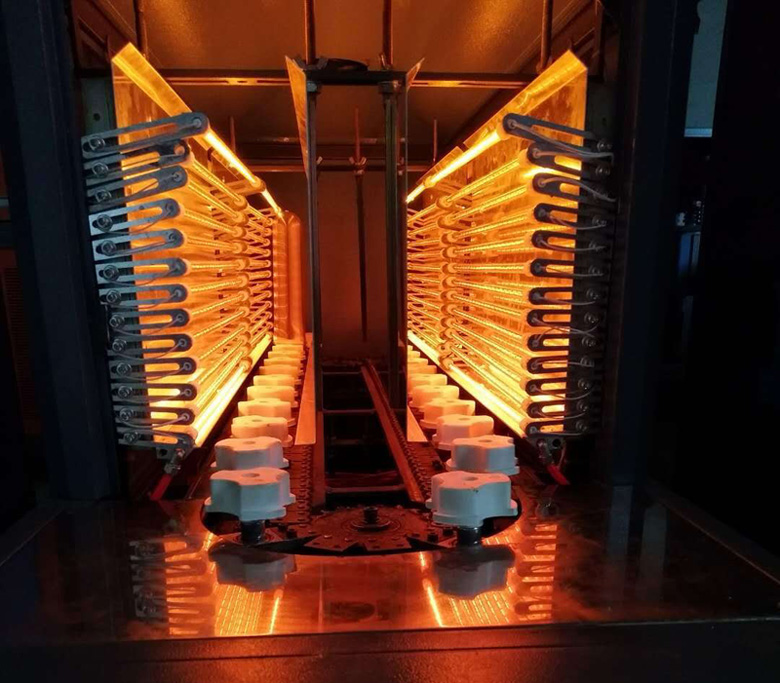

Infrared lamp tube is used for heating, with strong penetrating power, preform rotation and heating, orbital revolution, uniform heating, fast and reliable;

The width and height of the lamp tube and reflecting plate in the heating zone can be adjusted to suit the heating of preforms of different structures, and there is an automatic temperature exhaust device to ensure the constant temperature of the drying tunnel;

Each mechanical action has a safety self-locking device. When a process fails, the program will automatically switch to a safe state;

Each action is driven by an oil pump, which has the advantages of no pollution and low noise;

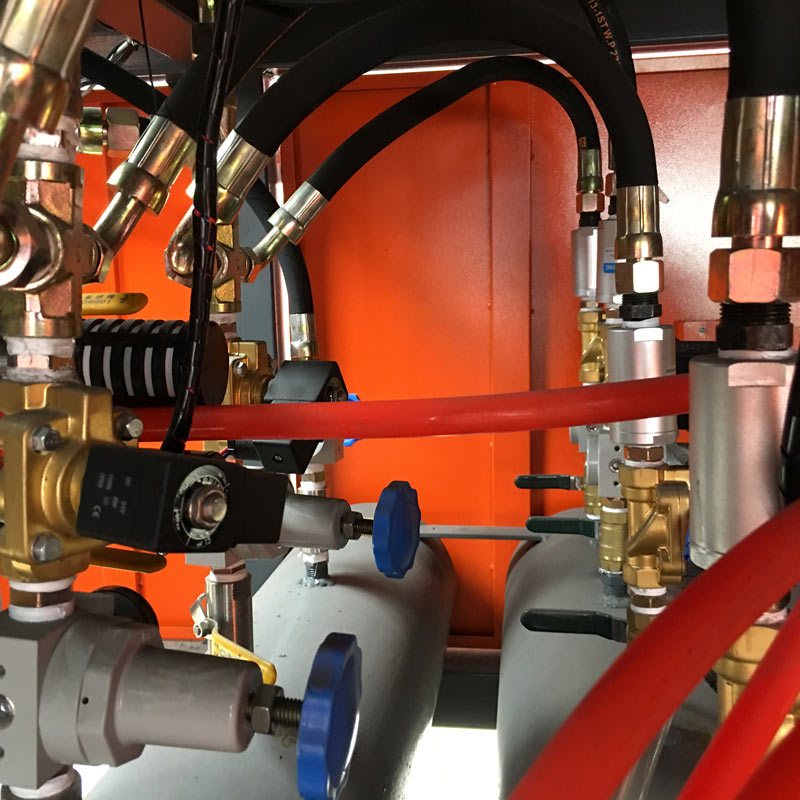

The air circuit design divides the action and blowing into three parts to meet the different air pressure requirements for bottle blowing and action;

Adopt high-pressure and double-curved-arm connecting rod clamping, which has strong clamping force;

There are two methods of operation, manual and fully automatic;

The safe and reliable unique valve position design makes the gas circuit clear;

The production process is fully automated, with low investment, high efficiency,

It has the advantages of easy operation, simple maintenance and safety. The bottle body is free from pollution. The cooling system achieves the desired cooling effect. Installation and simple start-up
